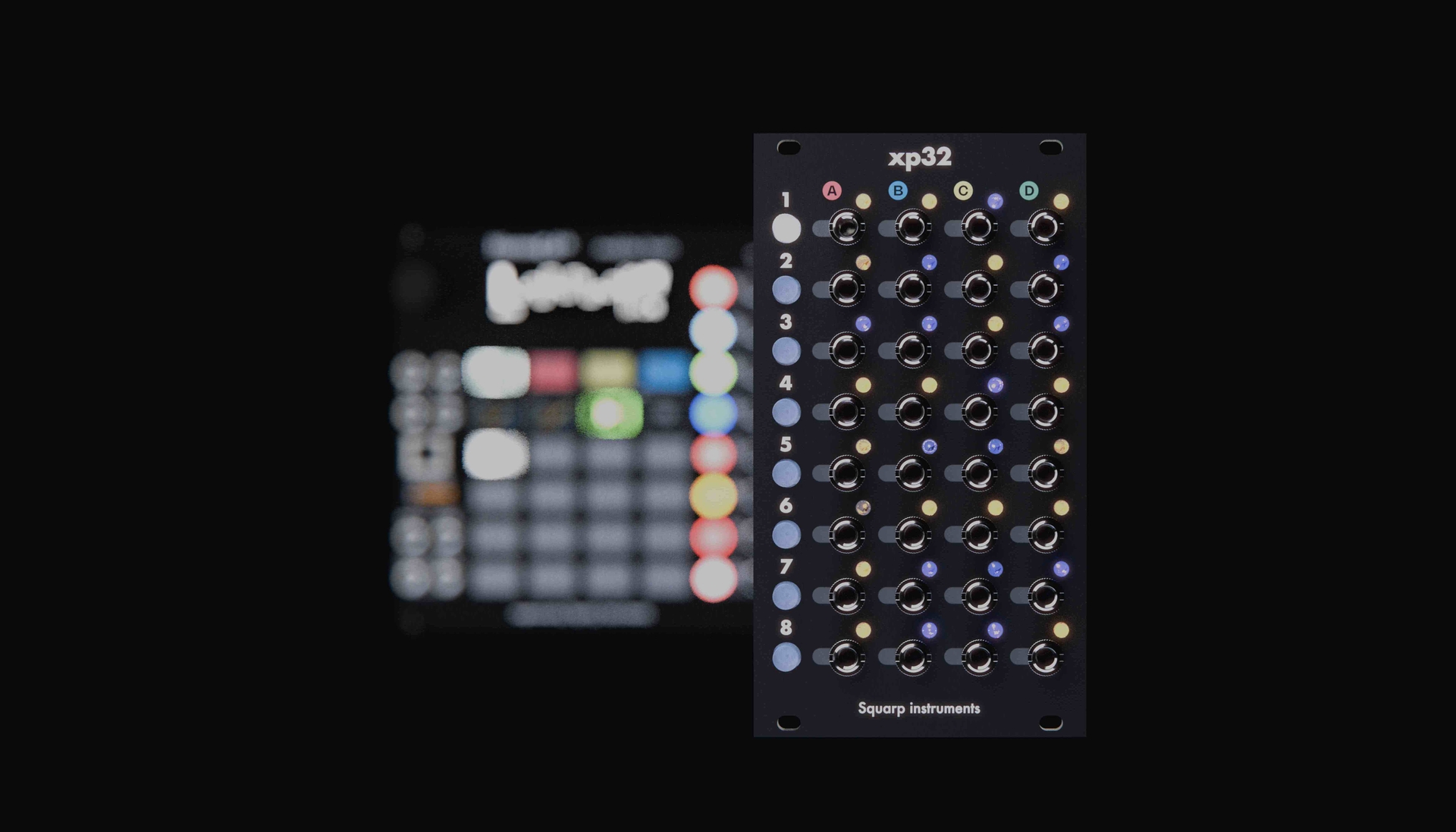

The Ultimate Output Expander For Hermod+
Introducing xp32, the perfect expander for unlocking 32 assignable CV or Gate outputs, amplifying the creative power of your Hermod+ sequencer.
Transform your Hermod+ into a 16–track CV/Gate powerhouse, an expansive MIDI/USB–to–CV interface, a preset manager, or customize your outputs to suit even the most intricate modular setups.
The xp32 opens a new world of possibilities for both live performances and studio setups, giving you the flexibility to realize your most complex musical ideas.
Transform your Hermod+ into a 16–track CV/Gate powerhouse, an expansive MIDI/USB–to–CV interface, a preset manager, or customize your outputs to suit even the most intricate modular setups.
The xp32 opens a new world of possibilities for both live performances and studio setups, giving you the flexibility to realize your most complex musical ideas.
Seamless Integration.
Setting up the xp32 is as easy as connecting the included expander ribbon cable to the back of your Hermod+.
The xp32 integrates seamlessly: Hermod+ will automatically recognize it, and your 32 additional outputs are ready to use instantly.
The xp32 integrates seamlessly: Hermod+ will automatically recognize it, and your 32 additional outputs are ready to use instantly.
With the xp32, Hermod+'s 8 CV/Gate tracks remain untouched. Instead, the xp32's 8 additional voices are internally mapped to Hermod+'s MIDI tracks, offering maximum expandability without altering your existing workflow.
Unmatched Precision & Flexibility.
Each of the 32 output jack is powered by a dedicated 16–bit industrial grade DAC, ensuring the best accuracy for all your control voltage signals, from pitch to fine modulations.
Easily configure each output as a Gate (for notes, triggers, or clocks) or as a CV (for pitch, velocity, aftertouch, modulation...).
Easily configure each output as a Gate (for notes, triggers, or clocks) or as a CV (for pitch, velocity, aftertouch, modulation...).
The xp32's wide voltage range (–10V to +10V) ensures compatibility with a variety of modules and gives you the freedom to design a layout that best suits your modular rig.
High-precision.
Low noise.
Low noise.
At the heart of the xp32 are highly-precise digital-to-analog conversion circuits, developed with meticulous attention to detail. We've incorporated high-end components to guarantee reliable, low-noise, high-performance outputs that you can depend on for both small and large modular systems.
The 32 signal LEDs are driven by a fully analog current-control circuit, guaranteeing zero digital noise.
Voice configuration examples
Default config
Envelope instead of gate
4 synchronized clocks
Drum trigs
4 LFOs
4 automation
USB/MIDI CC to CV
Keyboard to CV
Specifications
Power
Consumption : -12V 70mA, +12V 80mA, +5V 20mA
Hardware
Width : 14HP
Depth : 33mm
Height : 128,5mm (3U)
Weight : 170gr (0.37lbs)
32x CV outputs resolution : 16-bit DAC (industrial grade)
32x CV outputs range : –10V to +10V
